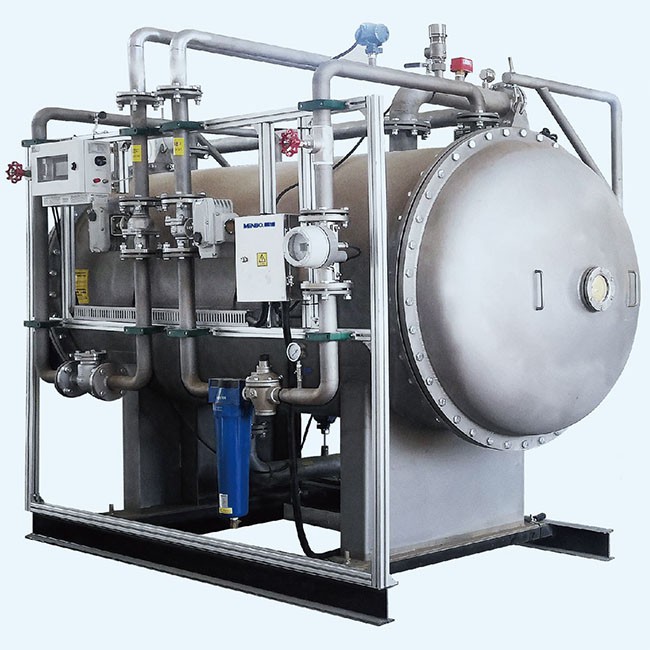

Large Scale Ozone Generator
1. Professional mechanical design
2. Advanced IGBT power supply unit
3. Low harmonic pollution
4. Low energy consumption
- Product Introduction
Product features
1. Professional mechanical design
2. Advanced IGBT power supply unit
3. Low harmonic pollution
4. Low energy consumption
5. High ozone concentration, strong and durable
6. Compact structure
7. Low maintenance workload
8. PLC automation, human-machine interface control
9. Larger processing device, optional bus
Application
Large scale ozone generators are mainly used in municipal tap water deep treatment; sewage treatment; water reuse treatment; chemical oxidation synthesis; pulp bleaching; waste gas and wastewater treatment; industrial cooling water treatment; swimming pool and landscape water treatment; pharmaceutical and food industries, etc.
Parameter Table of Air Source Large Ozone Generator
|
Model |
Ozone Output kg/h |
Air Volume Nm³/h |
Ozone Concentration mg/L |
Cooling water flow rate m³/L |
Power kwh/kgo3 |
Volume mm |
|
MB-D-K1K |
1 |
33.3-50.0 |
20-30 |
4.0 |
16 |
2400×2000×2100 |
|
MB-D-K2K |
2 |
66.6-98.6 |
8.0 |
2400×2000×2100 |
||
|
MB-D-K3K |
3 |
100.0-150.0 |
12.0 |
2400×2000×2100 |
||
|
MB-D-K5K |
5 |
166.6-250.0 |
20.0 |
2400×2000×2100 |
||
|
MB-D-K8K |
8 |
266.6-400.0 |
32.0 |
4400×3000×2300 |
||
|
MB-D-K10K |
10 |
333.3-500 |
40.0 |
4400×3000×2300 |
||
|
MB-D-K15K |
15 |
500.0-750.0 |
60.0 |
4400×3000×2300 |
||
|
MB-D-K20K |
20 |
666.6-1000.0 |
80.0 |
4400×3000×2300 |
||
|
MB-D-K25K |
25 |
833.3-1250.0 |
100.0 |
9600×4000×2600 |
||
|
MB-D-K30K |
30 |
1000.0-1500.0 |
120.0 |
9600×4000×2600 |
||
|
MB-D-K50K |
50 |
1666.0-2500.0 |
200.0 |
9600×5000×2600 |
||
|
MB-D-K60K |
60 |
2000.0-3000.0 |
240.0 |
9600×5000×2600 |
||
|
MB-D-K100K |
100 |
3333.0-5000.0 |
400.0 |
15000×8000×3000 |
||
|
*1.0zone power is based on different ozone concentrations and usage environmental conditions(cooling water temperature and gas source temperature); 2.The external dimensions and weight data in the table are for reference only (due to continuous technological progress,any changes will not be notified). |
||||||
Parameter Table of Oxygen Source Large Ozone Generator
|
Model |
Ozone Output kg/h |
Air Volume Nm³/h |
Ozone Concentration mg/L |
Cooling water flow rate m³/L |
Power kwh/kgo3 |
Volume mm |
|
MB-D-Y1K |
1 |
6.8-8.4 |
118-148 |
2.0 |
8 |
1600×800×1950 |
|
MB-D-Y2K |
2 |
13.6-16.8 |
4.0 |
1800×800×1950 |
||
|
MB-D-Y3K |
3 |
20.4-25.2 |
6.0 |
2200×1000×1950 |
||
|
MB-D-Y4K |
4 |
27.2-33.6 |
8.0 |
2400×2000×2100 |
||
|
MB-D-Y5K |
5 |
34.0-42.0 |
10.0 |
2400×2000×2100 |
||
|
MB-D-Y6K |
6 |
40.8-50.4 |
12.0 |
2400×2000×2100 |
||
|
MB-D-Y8K |
8 |
54.4-67.2 |
16.0 |
2400×2000×2100 |
||
|
MB-D-Y10K |
10 |
68.0-84.0 |
20.0 |
2400×2000×2100 |
||
|
MB-D-Y15K |
15 |
102.0-126.0 |
30.0 |
4400×3000×2100 |
||
|
MB-D-Y20K |
20 |
136.0-168.0 |
40.0 |
4400×3000×2100 |
||
|
MB-D-Y25K |
25 |
170.0-210.0 |
50.0 |
4400×3000×2100 |
||
|
MB-D-Y30K |
30 |
204.0-252.0 |
60.0 |
4400×3000×2100 |
||
|
MB-D-Y50K |
50 |
340.0-420.0 |
100.0 |
9600×4000×2600 |
||
|
MB-D-Y80K |
80 |
544.0-672.0 |
160.0 |
9600×4000×2600 |
||
|
MB-D-Y100K |
100 |
680.0-840.0 |
200.0 |
9600×5000×2600 |
||
|
MB-D-Y200K |
200 |
1360.0-1680.0 |
400.0 |
15000×8000×3000 |
||
|
*1.0zone power is based on different ozone concentrations and usage environmental conditions(cooling water temperature and gas source temperature); 2.The external dimensions and weight data in the table are for reference only (due to continuous technological progress,any changes will no be notified). |
||||||

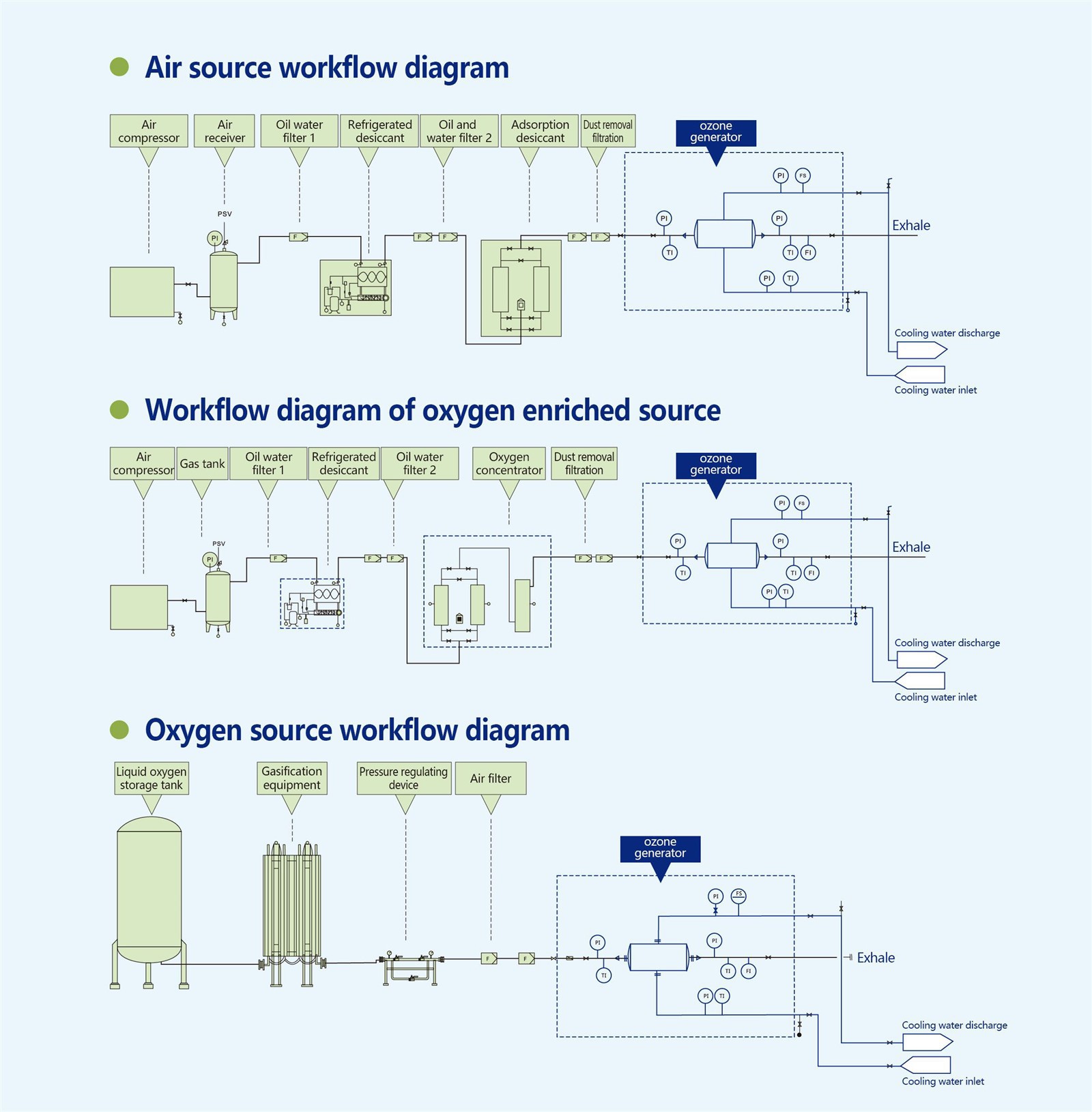

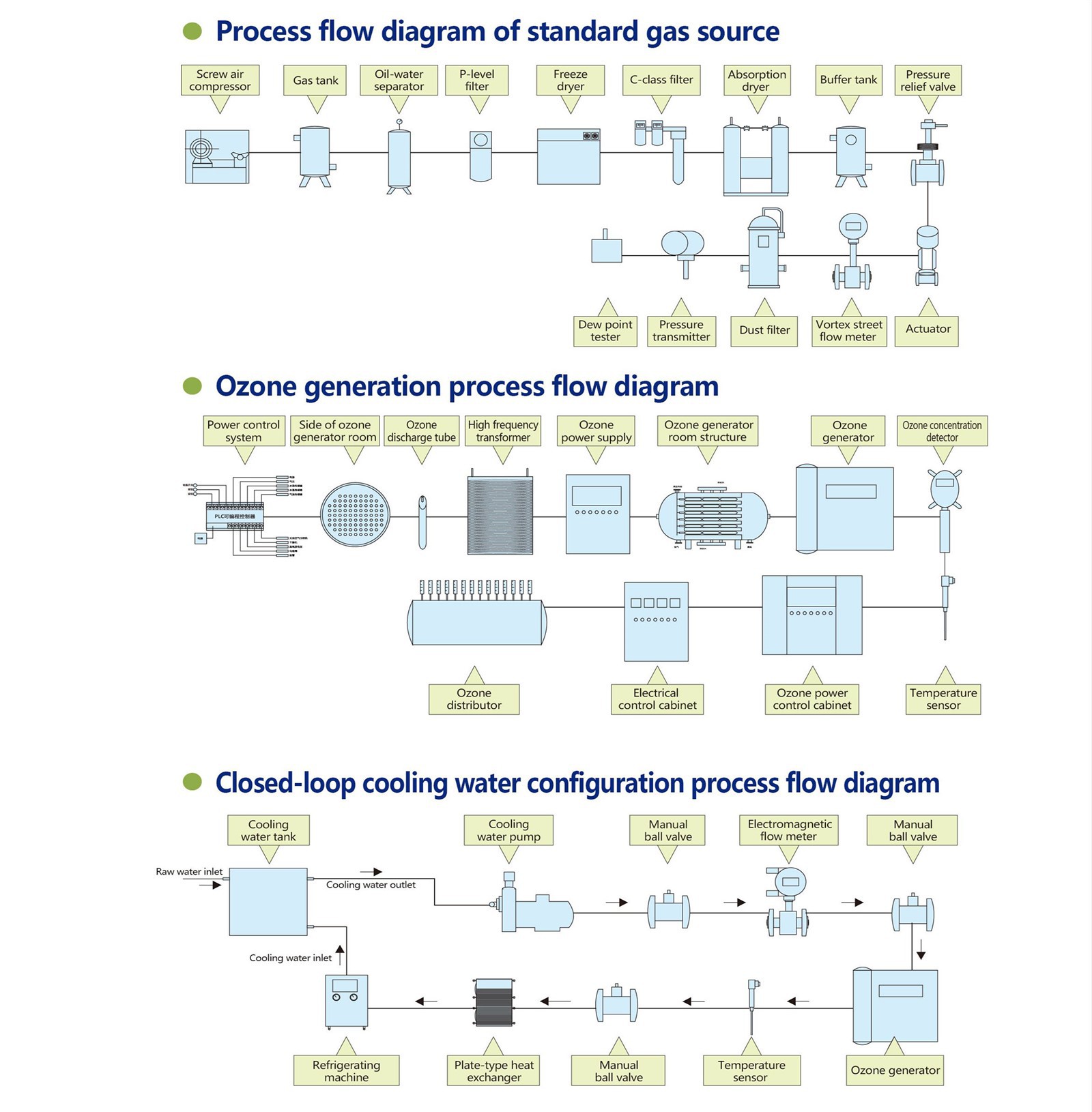

Large ozonizer flowchart of principle
If you're in need of large scale ozone generators to help with your business, please be free to buy with our factory. As one of the leading such manufacturers in China, we will offer you low price and unmatched services.
