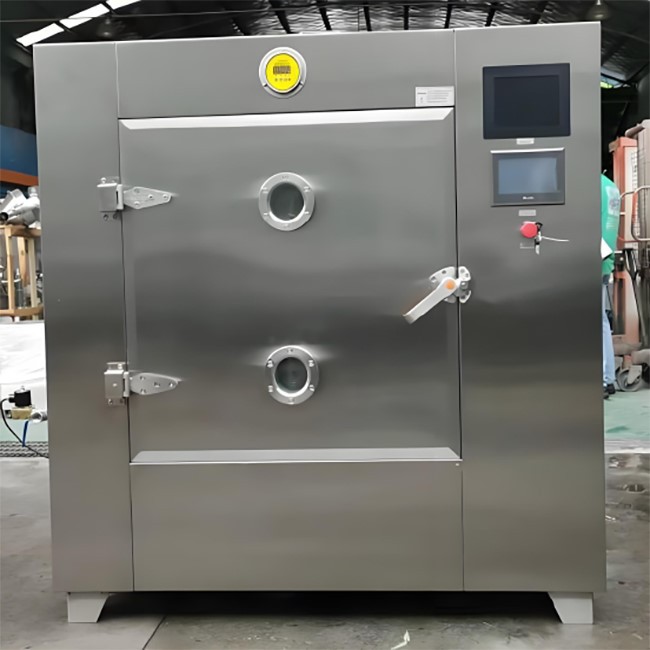

Box Type Microwave Vacuum Dryer
This machine is used for low-temperature drying of heat-sensitive solid preparations of traditional Chinese medicine. It can also be used as a vacuum concentration equipment. It has a very fast drying speed and can greatly improve product quality.
- Product Introduction
Application
This machine is used for low-temperature drying of heat-sensitive solid preparations of traditional Chinese medicine. It can also be used as a vacuum concentration equipment. It has a very fast drying speed and can greatly improve product quality. It has the characteristics of high efficiency, uniform heating, easy control, and convenient installation and maintenance. It can be used for drying, heating, sterilization, and maturation of medicines, biological products, and agricultural and sideline products. It has excellent drying effects on various pills and can be used for boring. The box type microwave vacuum dryer also has the effects of disinfection and sterilization. The power is linearly adjustable, the environment and temperature are controllable, and the products produced are hygienic and can extend the shelf life.
Structural features
Thermosensitive materials can be quickly dried, dehydrated, and concentrated at room temperature, and the material dehydration temperature can be controlled at room temperature-80 ℃. Infrared temperature measurement, digital timing, adjustable power, intelligent control, simple operation, uniform heating, energy saving of 50% compared with conventional process equipment, can also be used for drying, dehydration, and concentration of many easily oxidizable materials. The materials run in parallel, the material laying area is large, and various grades of equipment are available for selection.
Technical Parameters
|
Project Unit |
WZ-6 |
WZ-9 |
WZ-12 |
WZ-15 |
|
Microwave power kw |
6 |
9 |
12 |
15 |
|
Microwave frequency MHz |
2450 |
|||
|
Supply voltage V |
380±10% |
|||
|
Sterilization capability kg/kw.h |
10-20 |
|||
|
Dehydration speed kg/kw.h |
0.8-1.2 |
|||
|
Dehydration temperature ℃ |
Room temperature -80℃ |
|||
|
Baking tray size mm |
500×500×50 |
800×800×50 |
||
|
Dimensions mm L×W×H Adjustable |
1600×1400×2000 |
1900×1600×2000 |
||
If you're in need of box type microwave vacuum dryer to help with your business, please be free to buy with our factory. As one of the leading such manufacturers in China, we will offer you low price and unmatched services.
