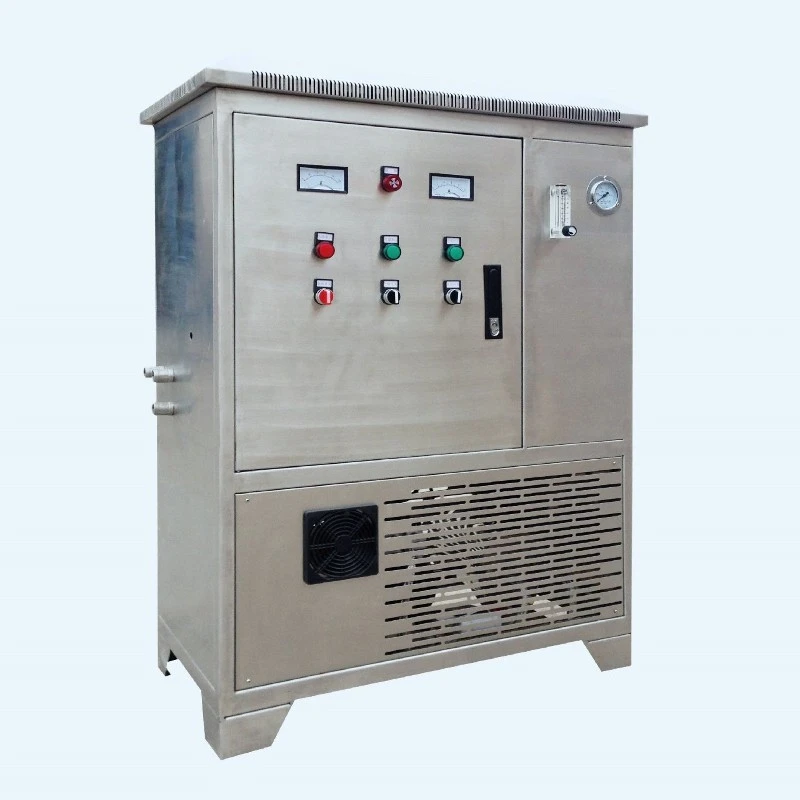

Integrated Ozone Generator
The integrated ozone generator is a special equipment that uses the strong oxidizing property of ozone for disinfection and sterilization. It is mainly divided into two categories: oxygen source type and air source type. It uses PEM membrane electrolysis technology to generate ozone through low-voltage direct current electrolysis of deionized water, and no harmful substances such as nitrogen oxides are produced in the process.
- Product Introduction
Product description
The integrated ozone generator is a special equipment that uses the strong oxidizing property of ozone for disinfection and sterilization. It is mainly divided into two categories: oxygen source type and air source type. It uses PEM membrane electrolysis technology to generate ozone through low-voltage direct current electrolysis of deionized water, and no harmful substances such as nitrogen oxides are produced in the process.
Product features
- High efficiency sterilization
- Compact design
- Intelligent control
- Strong stability
- Low cost operation and maintenance
- Safety guarantee
Application
1. Integrated ozone generators are widely used to remove residual pesticides from vegetables, fruits, fish, meat and other foods.
2. Highly efficient sterilization and disinfection, which can quickly kill a large number of bacteria and viruses that breed in the water, and can make active water rich in oxygen beneficial to the human body.
3. Prevent diseases, tap water can effectively kill viruses on tableware after ozone purification.
4. Healthy skin; used for bathing and washing face to thoroughly remove stains in pores, activate epidermal cells, and promote skin metabolism.
5. Hair care, foot bath health care. Washing hair with ozone water can remove dandruff and relieve itching, and soaking feet can cure athlete's foot.
6. Economical and affordable; this series of products allows you to enjoy a safe, convenient, high-quality healthy life.
Integrated Ozone Machine Parameter Table (Water Cooled Type)tion
|
Ozone field g/h |
Ozone Concentration mg/L |
Air Volume L/min |
Power kw |
Power Supply V/Hz |
Cooling water flow rate m³/L |
Weight kg |
Volume mm |
|
50 |
80-120 |
6-8 |
2.0 |
220/50 |
0.1 |
82 |
860×550×1250 |
|
100 |
12-16 |
2.6 |
0.2 |
110 |
860×550×1600 |
||
|
150 |
18-24 |
3.5 |
0.3 |
130 |
860×550×1600 |
||
|
200 |
24-32 |
4.7 |
0.4 |
160 |
860×550×1600 |
||
|
*Indoorenvironment with odo,umiditys 65%,temperature ≤30℃,continuous operation.Please explain. |
|||||||
