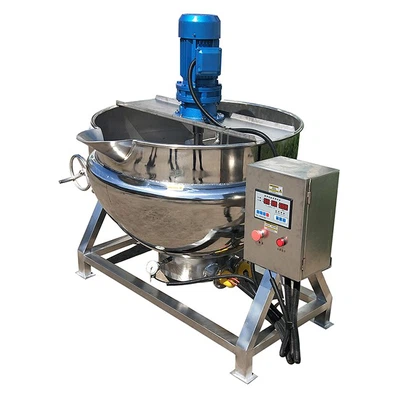

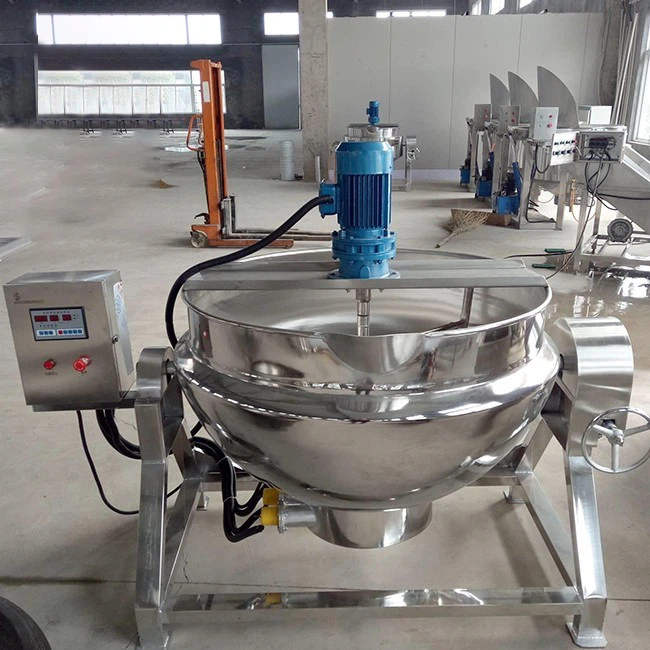

Tilting Sandwich Pot
The sandwich pot has the characteristics of large heating area, high thermal efficiency, uniform heating, short boiling time of liquid materials, and easy control of heating temperature. The pot body can be turned over for easy discharge.
- Product Introduction
Product features
The sandwich pot has the characteristics of large heating area, high thermal efficiency, uniform heating, short boiling time of liquid materials, and easy control of heating temperature. The pot body can be turned over for easy discharge.
Working principle
Steam or electric heating (heat-conducting oil) of a certain pressure is used as the heat source to heat the interlayer of the sandwich pot and indirectly heat the materials in the pot.
Application
Tilting sandwich pot is suitable for steaming, boiling, stewing, blanching, refining honey and other processing of Chinese medicinal materials. It can also be used for extraction and concentration of Chinese medicine and food processing.
Technical Parameters
|
Model |
JCG-100 |
JCG-200 |
JCG-300 |
JCG-500 |
|
Volume(L) |
100 |
200 |
300 |
500 |
|
Pot diameter mm) |
700 |
800 |
900 |
1100 |
|
Motor power(kw/v) |
0.55/380 |
0.75/380 |
1.1/380 |
1.5/380 |
|
Electric heating power(kw/v) |
12/380 |
15/380 |
18/380 |
27/380 |
|
Heat exchange area(m2) |
0.58 |
1.13 |
1.43 |
2 |
|
Work Pressure(Mpa) |
0.1-0.4 |
|||
|
Machine weight(kg) |
110 |
125 |
150 |
250 |
|
Dimensions mm) |
1300×900×800 |
1400×1100×850工 |
1700×1200×880 |
1850×1350×920 |
|
Main materials |
Stainless steel |
|||
If you're in need of tilting sandwich pot to help with your business, please be free to buy with our factory. As one of the leading such manufacturers in China, we will offer you low price and unmatched services.
