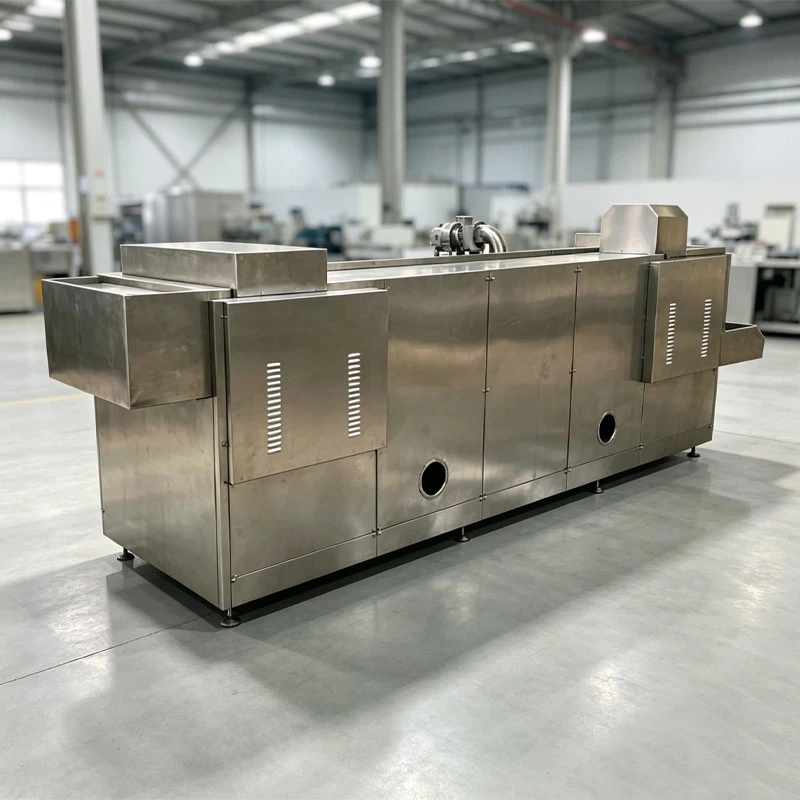

Continuous Belt Dryer
The Continuous Belt Dryer is designed for continuous hot-air drying of industrial materials.Wet material is spread evenly on the moving belt and passes through the drying chamber at a controlled speed. Moisture is removed gradually during the process.
- Product Introduction
Product Description
The Continuous Belt Dryer is designed for continuous hot-air drying of industrial materials.
Wet material is spread evenly on the moving belt and passes through the drying chamber at a controlled speed. Moisture is removed gradually during the process.
The belt dryer is suitable for granular, sliced, strip and some formed materials. Drying time can be adjusted according to the material condition.
We prefer a practical design. The machine is built for stable continuous operation rather than complicated operation.
Working Principle
The Belt Dryer uses heated air to transfer heat to the wet material and carry away evaporated moisture.
Material is evenly distributed on the perforated or mesh belt. Hot air passes through or across the material layer to improve heat and moisture transfer.
The drying chamber can be divided into several zones. Temperature and airflow can be adjusted in different zones to match the drying curve of the material.
Structure & Features
The Industrial Belt Dryer mainly consists of a feeding system, drying chamber, conveyor belt, heating system, circulation fans and discharge system.
Single-layer and multi-layer configurations are available. A multi-layer design can provide a longer drying path within a limited floor area.
The belt speed is adjustable. A slower speed can be selected when the material requires a longer residence time or gentler drying conditions.
Main Parameters
The actual parameters of the Conveyor Belt Dryer depend on material moisture, capacity and final moisture requirements.
|
Model |
DW-1.2-8 |
DW-1.2-10 |
DW-1.6-8 |
DW-1.6-10 |
DW-2-8 |
DW-2-10 |
|
|
Number of units |
4 |
5 |
4 |
5 |
4 |
5 |
|
|
bandwidth m |
1.2,1.6,2 |
||||||
|
Drying section length m |
8 |
10 |
8 |
10 |
8 |
10 |
|
|
Thick auxiliary material mm |
10-80 |
||||||
|
Operating temperature ℃ |
60-130 |
||||||
|
Vapor pressure Mpa |
0.2-0.8 |
||||||
|
Steam consumption Kg/h |
120-300 |
150-375 |
150-375 |
170-740 |
180-500 |
225-600 |
|
|
Material drying time h |
0.2-1.2 |
0.25-1.5 |
0.2-1.2 |
0.25-1.5 |
0.2-1.2 |
0.2-1.5 |
|
|
Drying strength Kg/h |
60-160 |
80-220 |
75-220 |
95-250 |
100-260 |
120-300 |
|
|
Total fan power Kw |
9.9 |
12.1 |
9.9 |
12.1 |
18.2 |
22.2 |
|
|
Total power of equipment Kw |
11.4 |
13.6 |
11.4 |
13.6 |
19.7 |
23.7 |
|
|
Dimension L×W×H m |
10×1.5×3.15 |
12×1.5×3.15 |
0.5×1.91×3.15 |
12.05×1.91×3.15 |
10.1×2.33 ×3.65 |
12.1×2.33 ×3.65 |
|
Applications
The Continuous Mesh Belt Dryer can be used for food products, agricultural materials, herbal materials, chemical raw materials and other products requiring continuous drying.
It is especially suitable for materials that need controlled drying temperature and residence time. The permeable belt also allows hot air to pass through the material layer for more uniform drying.
Nanjing Mengbo Environmental Protection Technology Co., Ltd. supplies drying equipment based on material characteristics, production capacity and plant conditions. Send us your material and required capacity, and we can discuss a suitable drying solution.
